| 1/2.8" Progressive Scan CMOS Sensor (Supports low light sensitivity) |
Image Sensor |
Top Camera: 2.3mm @ F/2.2, Diagonal Field of View: 162°
Bottom Camera: 2.3mm @ F/2.2, Diagonal Field of View: 155° |
Lens |
| ICR infrared filter type (Max: 6m) |
Day & Night |
| 2D / 3D DNR |
DNR |
| Main camera: 2K (2048x1296), Bottom camera: 1080p (1920x1080) |
Max Resolution |
| 15fps, Fixed frame rate |
Frame Rate |
| H.265 / H.264 |
Video Compression |
| 120° |
Sensing Angle |
| Max. 5m |
Sensing Distance |
| Adjustable (High: 5m, Medium: 4m and Low: up to 3m) |
Sensitivity |
Audio Input: Built-in high-sensitivity microphone
Audio Output: Built-in high-power speaker
Button: Doorbell button with electronic doorbell
Reset Button: Yes |
Interface |
| IEEE802.11b, 802.11g, 802.11n |
Wi-Fi standard |
| 2.4GHz ~ 2.4835 GHz |
Frequency Range |
| Supports 20MHz |
Channel Bandwidth |
| 64/128bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Network Security |
| 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
Transmission Rate |
| EZVIZ Cloud Proprietary Protocol |
Protocol |
| Sound and light anti-dismantling alarm (Supports sending alerts via EZVIZ App) |
Tamper Alarm |
AI-Powered Human Shape Detection
Package Detection |
Intelligent Alarm |
| Two-Way talk |
Video Intercom |
Local: Built-in 32GB eMMC
Cloud: EZVIZ CloudPlay Storage (Subscription required) |
Storage |
| Temperature: -20°C~50°C, Humidity: 95% or less (non-condensing) |
Operating Conditions |
| IP65 |
IP Grade |
| Type-C: 5V(±10%), EZVIZ Solar Panel, 8-24VAC |
Power Supply |
| 5200mAh rechargeable lithium battery |
Battery Capacity |
| Max. 3W |
Power Consumption |
| 166x50x31 mm |
Doorbell Dimensions |
Net Weight: Doorbell: 276g
Package: 650g |
Weight |
Max. Power Voltage: 8.1V
Max. Power Current: 240mA
Max. Power: 1.2W
Size: 126x56x44 mm
IP Grade: IP65
Operating Temperature: -20°C to 50°C |
Solar Panel |

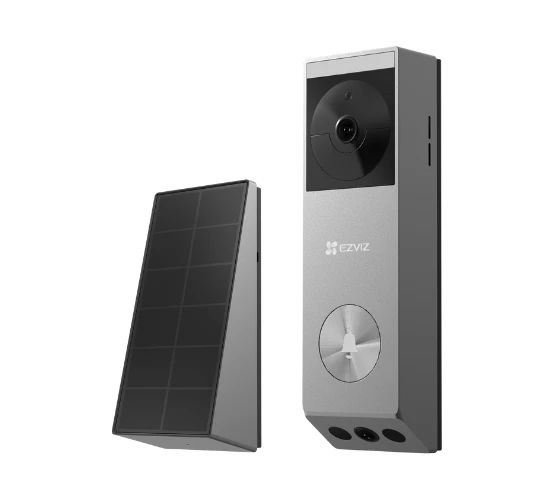

| EP3x Pro Video Doorbell, Mounting Bracket for Doorbell, Inclined Mounting Bracket, Drill Template for Doorbell, Solar Panel, Drill Template for Solar Panel, Power Cable, Pin, Screw Kit x3, U-shaped Wire x2, Wire Connector x2, Quick Start Guide |
In the box |
| CE / REACH / WEEE / RoHS |
Certifications |
