32CH Over Network (Out of which up to 16Ch PoE Direct Connection)
|
Video Input
|
|
HDMI (4K@60Hz, 4K@30Hz 1080P), VGA (1080P, 1280x1024, 1024x768)
|
Video Output
|
|
Independent* (When enabled, NVR based analytics are disabled)
|
View Mode
|
|
Local + Web
|
Fish-Eye Dewarp
|
|
H.265 / H.265+ / H.265S / H.264
|
Decoding Format
|
|
1Ch - 8MP; 4Ch - 2x8MP + 2x5MP; 9/16Ch - 1MP; 32Ch - D1
|
Decoding Capabilities
|
|
Input: 1CH RCA (Linear, 1k Ω) + IP Cameras Inputs
Output: 1CH RCA (2.0Vp-p, 1k Ω) + IP Cameras Outputs
Two Way Audio: Yes
Compression: G.711A / G.711U
|
Audio
|
|
Supported Analytics: Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal. Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition
Analytics Channels (IPC Based): 32Ch
(Requires supporting IP Cameras)
Face Recognition Rate: 180 Faces per minute (All Channels) / 3 Faces per second (Single Channel)
|
Analytics
|
|
Incoming: 256Mbps
Outgoing: 256Mbps
|
Bandwidth
|
|
32CH 8MP Real-Time
|
Real-Time Recording
|
|
Record Type: Video / Video + Audio
8MP and lower: 960FPS (NTSC) / 800FPS (PAL)
Master stream over network: Up to 32CH @Recording Resolution
Recording Modes: Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations
|
Record / Main Stream
|
|
Resolution: Depends on IPC
|
Substream
|
|
160Ch (Limited to Outgoing Bandwidth Capacity)
|
Max Channel Remote View
|
|
User Access: 10 Users Online with Professional Authority Management
Mobile App: Provision Cam2 for iOS / Android
PC/Mac Software: Ossia VMS Standard / Enterprise
Plug-in free Web-Browser: Chrome, FireFox, Safari, Edge, Opera (All Limited to 4Ch Live View / Playback)
Plug-in based Web-Browser: Internet Explorer
|
Remote Application
|
|
Local Playback: 16Ch
Remote Playback: 32Ch
Search Mode: DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
|
Playback
|
|
USB: 1 USB 2.0 Port + 1 USB 3.0 Port
Format: AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)
|
Backup
|
|
Input: 16 + IPC
Output: 1 + IPC
|
Alarm
|
|
HDD: 8 (Up to 8TB each)
E-SATA Support: 1 (Up to 8TB each)
|
Storage
|
|
Connection: Via Network
Supported Controls: Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485: Yes (C06 Keyboard Connection)
|
PTZ
|
|
Ethernet:10/100/1000 Mbps self-adaptive Ethernet interface
Protocols: TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
|
Network
|
|
Full Device Support (Profile T/G, ONVIF Version 20.12)
|
ONVIF
|
|

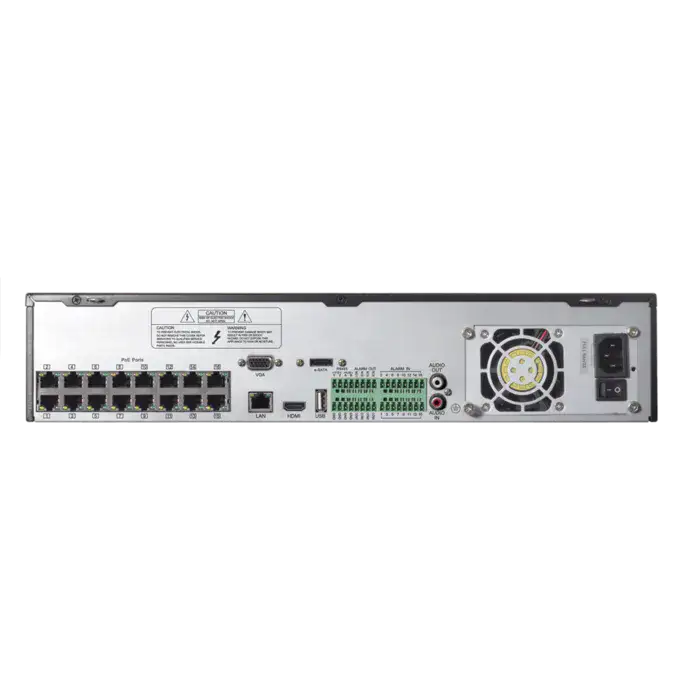

16x RJ45
|
PoE Ports
|
|
10/100Mbps (10Mbps Under CCTV Mode)
|
PoE Speed
|
|
PoE (IEEE802.3AF / AT)
|
PoE Standard
|
|
Yes (Up to 200m and 10Mbps bandwidth)
|
PoE CCTV Mode
|
|
240W (Average 15W per Channel)
|
PoE Total Power
|
|
25.5W~
|
PoE Max. Power Output (Per Ch.)
|
|
430x445x97 mm
|
Dimension (WxDxH)
|
|
15W
|
Power Consumption (No HDD)
|
|
AC100-240V
|
Power Supply
|
|
0°C~50°C
|
Operation Temperature
|
