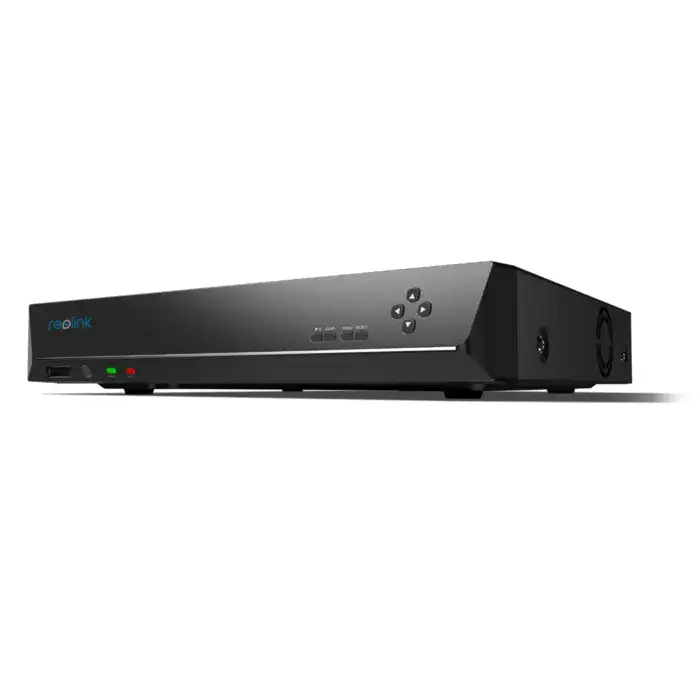

RLN36
36Channel 16MP Network Video Recorder |
Model |
| N5MB01 |
Hardware |
| 1xHDMI, 1xVGA |
Video Out |
| 1audio-in channel, RCA; 1 audio-out channel, RCA |
Audio Ports |
Front panel: 1x USB2.0; back panel: 1x USB2.0, 1x USB 3.0
|
USB Ports |
4x RJ-45, 10/100/1000 Mbps self adaptive (for IP cameras)
1x RJ-45, 10/100/1000 Mbps self adaptive (for LAN / WAN)
No PoE Port |
Ethernet Ports |
| In: 8 channels; Out: 4 channels |
Alarm |
IP Camera Input: Supports up to 36 channels of IPC access; each channel up to 16MP input
Video Output
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
Video |
|
Two-Way Audio: Built-in audio in & out ports
Audio In: Via cameras with mic; via built-in 1 channel
Audio Out: Via built-in 1 channel
|
Audio |
|
H.265, H.264
|
Video Compression |
7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p (Supports only 1-channel playback if
you view it in 8MP or higher resolution)
|
Live View / Playback Resolution |
| Up to 4 channels |
Synchronous Playback |
| Person / vehicle event recording; motion-triggered recording; 24/7 recording |
Supported Modes |
Internal HDD: 3 SATA ports for 3 HDDs (optional)
Max. Capacity: 48TB (max. 16TB HDD for each SATA) |
Storage |
| HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
Network Protocols |
| Edge, Firefox, Chrome, Safari |
Browsers Supported |
| PC: Windows, Mac OS; Smartphone: iOS, Android |
OS Supported |
| Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams); 20 users (1 admin account & 19 user accounts) |
Maximal User Access |
| DC 12V / 5.4A |
Power Supply |
| 10W (without HDD)> |
Power Consumption |
Temperature: -10°C~45°C
Humidity: 10%~90% |
Working Environment |
| 330x48x310 mm |
Dimensions |
| 2.26kg (Without HDD) |
Weight |
