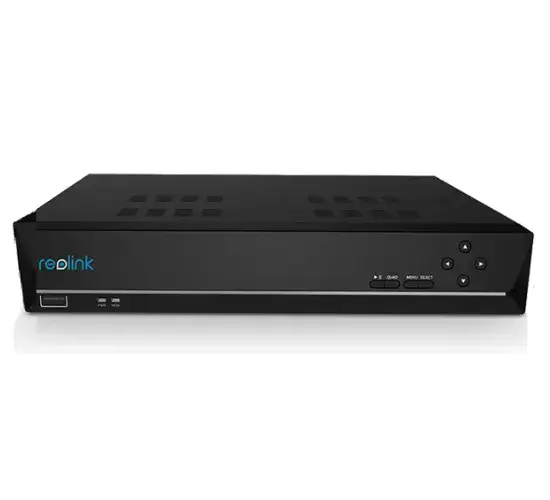

| N7MB01 |
Hardware |
| 8x PoE IP camera |
IP Video Input |
| Cameras with built-in mic |
Audio Input |
| VGA, HDMI |
Video Output |
|
HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
|
Display Resolution |
|
1channel, RCA
|
Audio output |
|
H.264, H.265
|
Video Format |
| 7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x2560, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
Live View / Playback Resolution |
| Up to 4 channels |
Synchronous Playback |
SATA: 1x SATA interface
External HDD: 1 eSATA interface for HDD
Capacity: Up to 12TB (Max. 6TB capacity for each HDD
|
HDD |
2x USB2.0
|
USB Interface |
1x RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN
8x RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
Network Interface |
Max. Power Per Port: 25W
Supported Standard: IEEE 802.3af/at |
PoE |
| HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
Network Protocols |
| Edge, Firefox, Chrome, Safari |
Browsers Supported |
| PC: Windows, Mac OS; Smartphone: iOS, Android |
OS Supported |
| Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams); 20 users (1 admin account & 19 user accounts) |
Maximal User Access |
| DC 48V~53V |
Power Supply |
| 10W (without HDD & PoE)> |
Power Consumption |
Temperature: -10°C~45°C
Humidity: 10%~90% |
Working Environment |
| 260x41x230 mm |
Dimensions |
| 1.4kg |
Weight |
